GAMMA VEICOLI e ACCESSORI

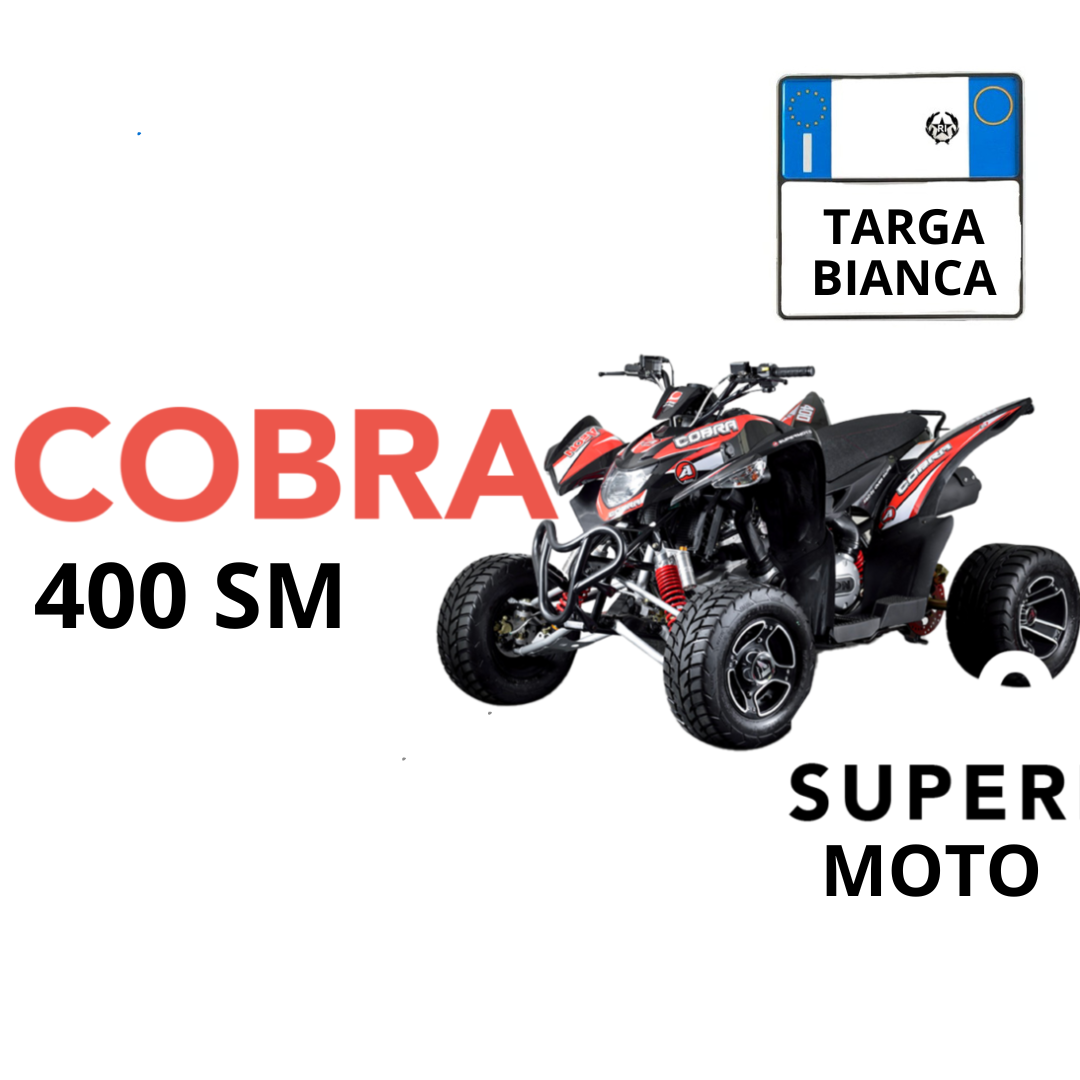

QUAD AEON MOTOR SUPERMOTO 400i SM Euro 5

Catalogo / VEICOLI NUOVI / QUAD ATV / AEON

€7,790.00

Disponibile

Dettagli del prodotto

Preparati ad un divertimento mai visto prima: guida leggera e prestazioni eccellenti per un'esperienza unica . Vivi la strada come mai prima d'ora: libertà, velocità, Cobra 400SX

ENGINE	引擎
Type	引擎型式	四行程單缸平衡軸 4-stroke, Single cylinder with balance gear shaft
Displacement	排氣量	346.4 cc
Bore x stroke	缸徑×行程	82 mmX65.6 mm
Compression ratio	壓縮比	10.6:1
Max. power	最大馬力	15kW @ 6500 rpm
Max. torque	最大扭力	23.4N-m @ 3500 rpm
Carburetion	燃料供給	EFI
Ignition	點火型式	晶體點火 T.C.I.
Starting system	起動方式	電動 Electric motor
Clutch type	離合器型式	Automatic, Dry centrifugal clutch
Transmission	傳動方式	CVT
Final drive system	動力輸出方式	軸傳動Shaft drive二輪驅動 2WD
CHASSIS	底盤
Frame	車架	鋼管 Tube
Front suspension	前懸吊系統	雙避震器雙A臂, 212 mm 行程 Dual hydraulic shock, Double wishbone ; 212 mm travel
Rear suspension	後懸吊系統	單避震器懸臂式後叉, 174 mm行程, Single hydraulic shock, Unit swing arm ; 174 mm travel
Front brake	前輪煞車	雙油壓碟煞 Dual hydraulic discs
Rear brake	後輪煞車	單油壓碟煞 Single hydraulic disc
Combined brake	四輪煞車	腳踩踏板 Foot pedal
Parking device	駐車系統	後輪機械碟煞 Mechanical brake lock on rear disc
Front tire	前輪規格	165/70-10
Rear tire	後輪規格	255/40-10
DIMENSIONS	尺寸
Overall length	車長	1815 mm
Overall width	車寬	1,230mm
Overall height	車高	1080 mm
Seat height	座墊高度	820mm
Wheelbase	前後軸距	1,320 mm
Ground clearance	最小離地高	110 mm
Number of seats	乘坐人數	2人 2 Person
Dry weight	淨重	232kg
CAPACITY	負載能力
Fuel tank capacity	汽油箱容量	9.2 liters
Rack capacity	載貨架荷重	NA
Cargo bed capacity	載貨箱荷重	N/A
Towing capacity	扥車荷重	N/A
Max. loading capacity	最大載重	173 kg
